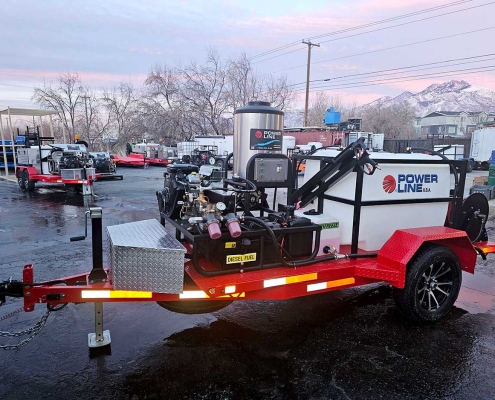

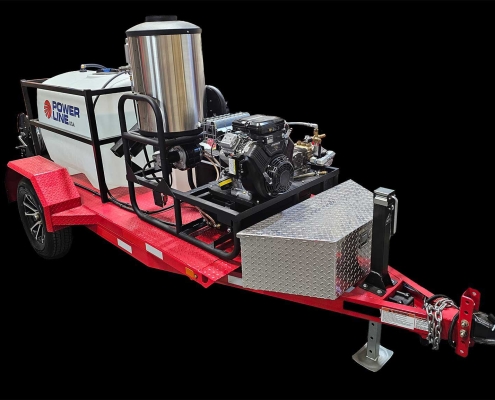

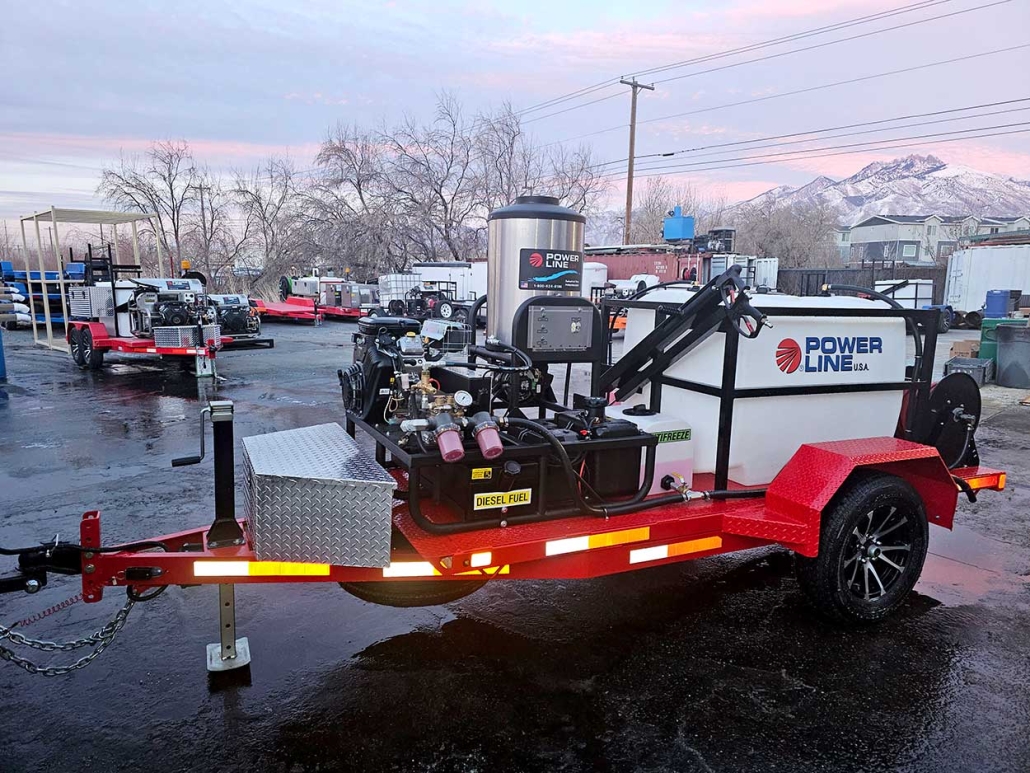

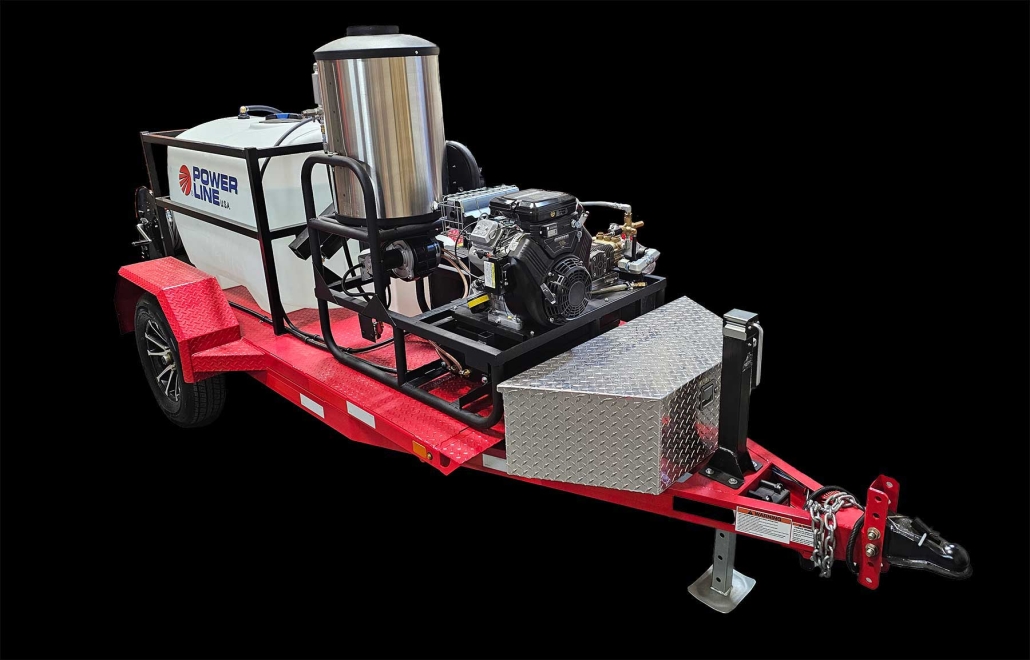

Trailer Mounted Pressure Washer Single Axle Starter Package

The 18HP Starter Power Wash Trailer Package is custom from the ground up! Featuring a 10.5′ full Diamond Plate Steel Deck Trailer with a 3,500 lb axle, and an 18 HP Premium Power Wash Unit that delivers 3,500 PSI with a full 5 GPM! Perfect for the budget minded power wash contractor that wants to look and be professional! Features an extremely efficient heater coil – saving fuel and generating enough cleaning power to clean nearly any job!


  • Motor: 18 HP Vanguard Engine – Made by Toyota
  • Output: 5 GPM @ 3500 PSI, fully adjustable pressure
  • Pump: General TS 2021 Ceramic Plunger Pump
  • Frame: Powder coated, uni-body built reinforced structural supports for added “over the road” shock support for coil support.
  • Motor and Pump Power Plate: Pre-assembled “Power-Plate” engineered to accept a variety of motor options. This enables the operator to change/service any component (motor, belt, generator, pump support brackets) in minutes – not hours.
  • Burner: Super high efficiency Beckett Burner
  • Fuel Tanks: 8 gallons diesel, 8 gallons gas
  • Horizontal Coil System: Features a new helical style horizontal engineering design that is super fuel efficient with super fast heat rise. Cold rolled continuous schedule 80 coil. The horizontal coil is much easier to support for “over the road” transportation vs. vertical coils.
  • Stainless Steel Coil Cover: Will not rust, looks great for years
  • Thermostat: Saves fuel when high temp is not necessary
  • Hour Meter: For service intervals
  • Easy Pressure Control: Front mounted to control flow and heat rise


  • Rugged, compact, and specially engineered to haul the equipment and water load. Leaf Spring Axles cushion and distribute the weight for easy towing.
  • HD Enamel Paint
  • 4′ x 10.5′ Diamond Plate Steel Deck
  • Integrated steel tank rack to hold water
  • Single Axle 3500 lb rated
  • Integrated sign holder – for sides and rear signage
  • Integrated Gun Holder
  • Chrome Wheels

Trailers in your choice of red, blue, or black. NOTE: ALL water tank cages come standard with black paint.

Exclusive Engineering Features

  • Pump Saver System
  • TBD (Total Belt Drive)
  • Low Pressure Chemical Application
  • Dual Filter System
  • Winterization Package


1 – 200 Gallon Water Tank 1 – Turbo Nozzle
1 – 100′ R-1 4,000 PSI hose with couplers 1 – Soap Injection System
2 – HD Hose Reels (5,000 PSI rated) 1 – Dual Lance Soap Control Gun and
Wand Assembly
1 – 100′ HD garden fill hose 1 – Complete 36″ Gun and Wand Assembly
1 – 20″ Hammerhead Industrial Duty
Surface Cleaner
1 – Water Broom Attachment
1 – 8 Gallon Soap Tank 1 – Gutter Clean Out Tool
1 – 8 Gallon Anti-Freeze Tank 8 – Nozzles Total (2-0°, 2-15°, 2-25°, 2-45°)
1 – Set of Extra “O” Rings (10-1/4″, 10-3/8″) 1 – “O” Ring Pick Tool
1 – 5 Gallon Drum Pak of “Power Plus”
(makes 55 gallons)
1 – 5 Gallon Drum Pak of “Astro”
(makes 55 gallons)
1 – 5 Gallon Drum Pak of “Concrete Floor
Cleaner” (makes 55 gallons)
